Introduction to AVL Tree

In the domain of Data Structures and Algorithms, maintaining efficiency is critical. A standard Binary Search Tree (BST) can degrade into a linear structure (like a linked list), resulting in poor performance O(n).

To address this issue, the AVL Tree was introduced as a self-balancing Binary Search Tree.

👉 It ensures that the height difference between left and right subtrees remains controlled, guaranteeing O(log n) time complexity for operations.

What is Tree Balancing?

Tree balancing ensures that the tree height remains minimal after every insertion or deletion.

Balance Factor Formula:

Balance Factor Formula:

Balance Factor = Height(Left Subtree) − Height(Right Subtree)

Conditions:

• -1, 0, +1 → Balanced
• Less than -1 or greater than +1 → Unbalanced

AVL Tree Structure

Each node in an AVL tree stores:

• Data (value)
• Height
• Left child
• Right child

AVL Tree Rotations

Rotations are the most important part of the working of the AVL tree. They are responsible for maintaining the balance in the AVL tree. There are 4 types of rotations based on the 4 possible cases:

1. Right Rotation (RR)
2. Left Rotation (LL)
3. Left-Right Rotation (LR)
4. Right-Left Rotation (RL)

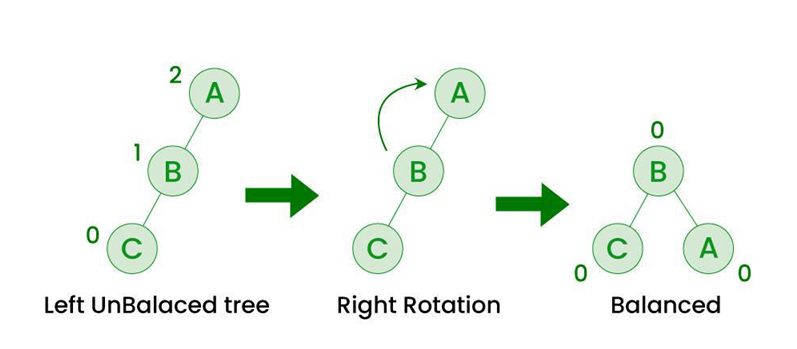

Right Rotation (RR)

The RR rotation is applied when a node becomes unbalanced due to an insertion into the right subtree of its right child. This type of imbalance is called Left Imbalance. The solution to it is to take the unbalanced node, and rotate the top edge (that is connected with parent) 90° to the right (clockwise).

Left Rotation (LL)

The LL rotation is used in an AVL tree to balance a node that becomes unbalanced due to an insertion into the left subtree of its left child. It is called Left Imbalance. The solution to it is to take the unbalanced node, and rotate the top edge (that is connected with parent) 90° to the left(anti-clockwise).

Left-Right Rotation (LR)

A right-left rotation is used when a left child of a node is right-heavy. It helps in balancing the tree after a double imbalance, which is another specific insertion case. We first perform a left rotation on the left child and follow it up with a right rotation on the original node.

Right-Left Rotation (RL)

The right left rotation is performed when a right child of a node is left-heavy. We perform a right rotation on the right child and follow it up with a left rotation on the original node.

VL Tree Operations

1. Insertion in AVL Tree

Steps:

1. Insert like BST
2. Update height
3. Calculate balance factor
4. Apply rotation if needed

AVL Tree Insertion Code

2. Deletion in AVL Tree

Deletion follows:

1. Perform BST deletion
2. Update height
3. Check balance
4. Apply appropriate rotation

Time Complexity

👉 Guaranteed due to strict balancing rules.

Advantages of AVL Tree

• Always balanced (strictly)
• Faster search compared to BST
• Predictable performance
• Ideal for lookup-heavy applications

Disadvantages of AVL Tree

• More rotations (overhead)
• Complex implementation
• Slightly slower insertion/deletion than Red-Black Trees

AVL Tree vs Other Trees

Real-World Applications

• Database indexing
• Memory management systems
• File systems
• Searching algorithms

Conclusion

The AVL Tree is a fundamental technique in maintaining efficient data structures. By enforcing strict height balance using rotations, AVL trees ensure optimal performance for dynamic datasets.

If your application demands fast lookup and guaranteed performance, AVL trees are a highly effective choice.
