Stack Data Structure in C++ with Real-Life Examples | Push, Pop & Top Operations Explained
Introduction to Stack
A Stack is one of the most fundamental linear data structures in computer science. It follows a very simple but powerful rule:
“LIFO—Last In, First Out”
This means the element inserted last will be removed first.
You can think of a stack like a pile of books:
-
You place a book on top → Push
-
You remove the top book → Pop
-
You check the top book without removing it → Top (Peek)
Stacks are widely used in:
-
Function calls (Call Stack)
-
Expression evaluation
-
Undo/Redo operations
-
Parenthesis checking
-
Browser history management
Objective of This Lab
This lab session introduces:
-
How to access the top of the stack
-
How to push data onto the stack
-
How to pop data from the stack
By the end of this lab, you will understand both the concept and implementation in C++.
Real-Time Example
🔄 Example: Undo Feature in a Text Editor
When you type something in a document:
-
Each action is pushed onto a stack.
-
When you press Undo, the last action is popped from the stack.
This behavior perfectly demonstrates the LIFO principle.

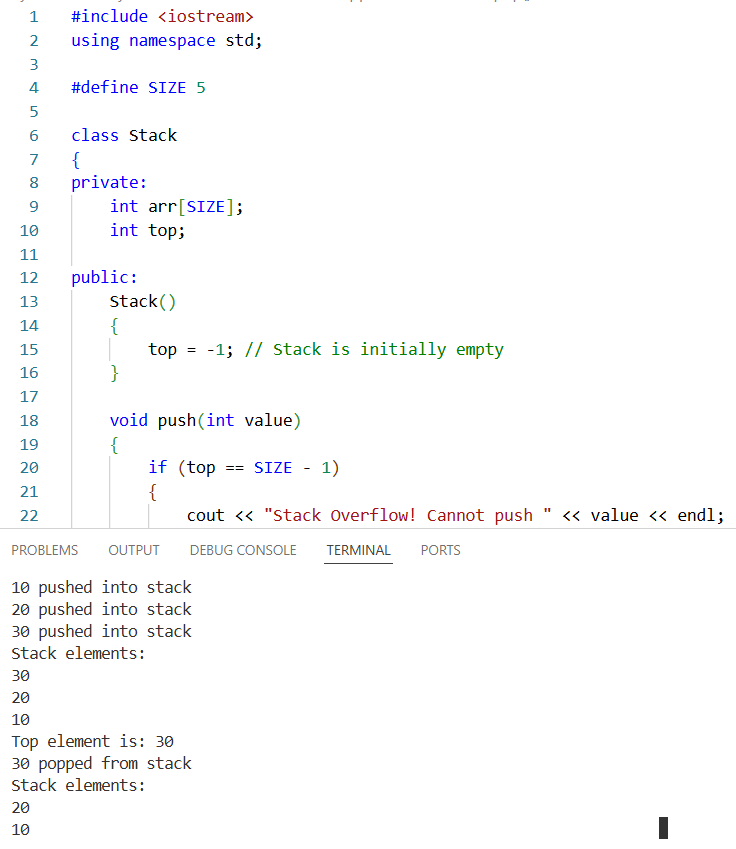

Stack Implementation in C++ (Using Array)
For lab understanding, we will implement stack using an array.
Step 1: Define Stack Structure
#include <iostream>
using namespace std;
#define SIZE 5
class Stack {
private:
int arr[SIZE];
int top;
public:
Stack() {
top = -1; // Stack is initially empty
}
🔼 Push Operation
Push adds an element to the top of the stack.
Algorithm:
-
Check if stack is full
-
Increment top
-
Insert element
void push(int value) {
if (top == SIZE - 1) {
cout << "Stack Overflow! Cannot push " << value << endl;
return;
}
top++;
arr[top] = value;
cout << value << " pushed into stack\n";
}
🔽 Pop Operation
Pop removes the top element from the stack.
Algorithm:
-
Check if stack is empty
-
Return top element
-
Decrement top
void pop() {
if (top == -1) {
cout << "Stack Underflow! Stack is empty\n";
return;
}
cout << arr[top] << " popped from stack\n";
top--;
}
👀 Accessing the Top Element (Peek)
Peek allows you to see the top element without removing it.
void peek() {
if (top == -1) {
cout << "Stack is empty\n";
return;
}
cout << "Top element is: " << arr[top] << endl;
}
📋 Display Stack Elements
void display() {
if (top == -1) {
cout << "Stack is empty\n";
return;
}
cout << "Stack elements:\n";
for (int i = top; i >= 0; i--) {
cout << arr[i] << endl;
}
}
};
🧪 Main Function (Testing Program)
int main() {
Stack s;
s.push(10);
s.push(20);
s.push(30);
s.display();
s.peek();
s.pop();
s.display();
return 0;
}
Important Conditions
Stack Overflow
Occurs when:
Stack Underflow
Occurs when:

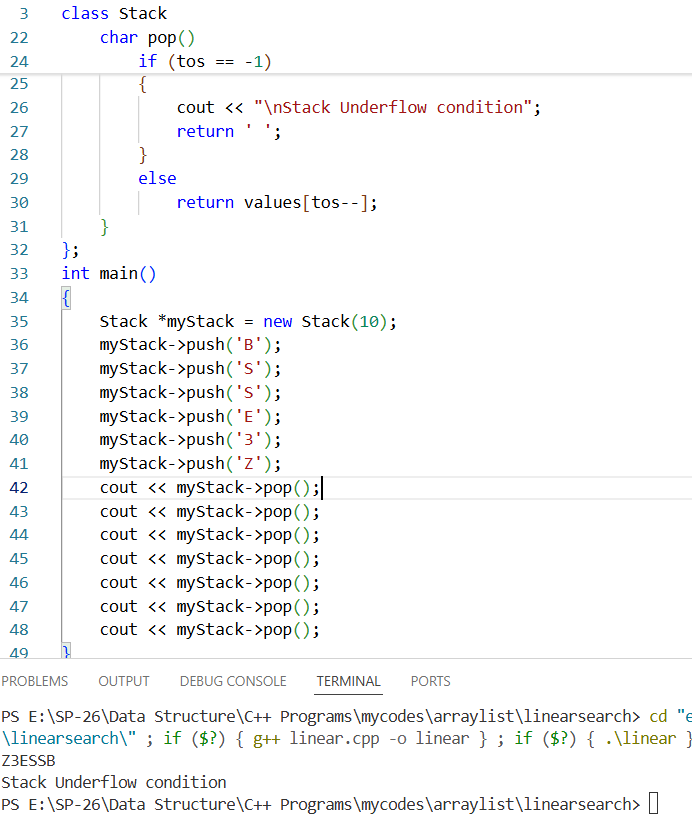

Activity 1:
#include <iostream>
using namespace std;
class Stack
{
private:
int tos;
char values[];
public:
Stack(int x)
{
tos = -1;
values[x];
}
void push(char x)
{
if (tos == 9)
cout << "\nStack overflow condition";
else
values[++tos] = x;
}
char pop()
{
if (tos == -1)
{
cout << "\nStack Underflow condition";
return ' ';
}
else
return values[tos--];
}
};
int main()
{
Stack *myStack = new Stack(10);
myStack->push('B');
myStack->push('S');
myStack->push('S');
myStack->push('E');
myStack->push('3');
myStack->push('Z');
cout << myStack->pop();
cout << myStack->pop();
cout << myStack->pop();
cout << myStack->pop();
cout << myStack->pop();
cout << myStack->pop();
cout << myStack->pop();
}

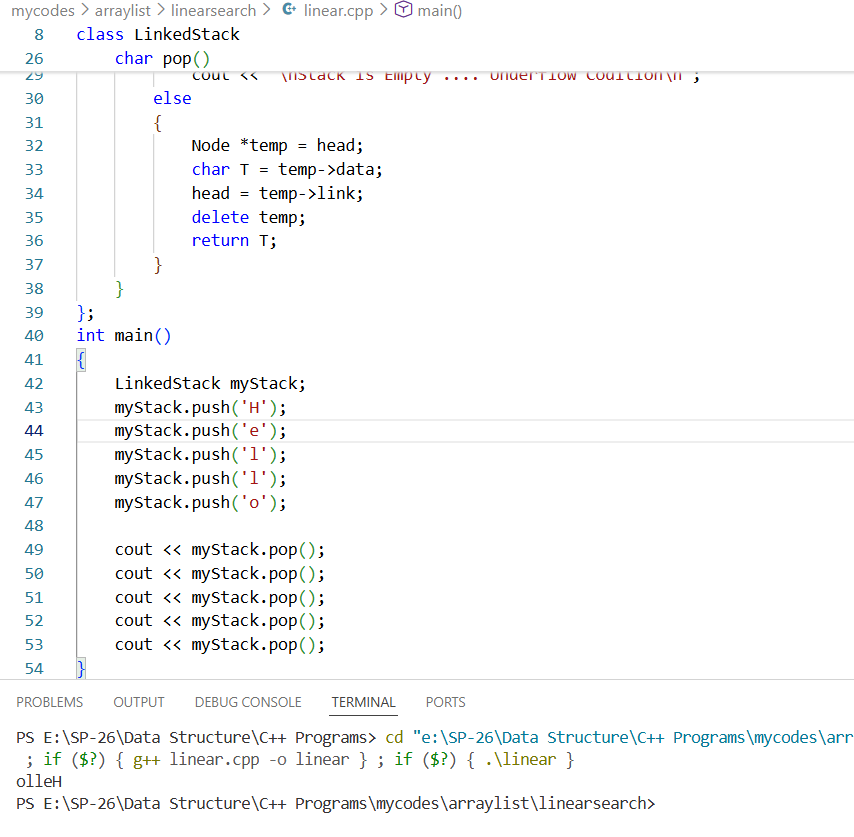

Activity 2:
Implement Dynamic Stack.
#include <iostream>
using namespace std;
struct Node
{
char data;
Node *link;
};
class LinkedStack
{
private:
Node *head;
public:
LinkedStack()
{
head = NULL;
}
void push(char e)
{
Node *temp = new Node;
temp->data = e;
temp->link = head;
head = temp;
}
char pop()
{
if (head == NULL)
cout << "\nStack is Empty .... Underflow Codition\n";
else
{
Node *temp = head;
char T = temp->data;
head = temp->link;
delete temp;
return T;
}
}
};
int main()
{
LinkedStack myStack;
myStack.push('H');
myStack.push('e');
myStack.push('l');
myStack.push('l');
myStack.push('o');
cout << myStack.pop();
cout << myStack.pop();
cout << myStack.pop();
cout << myStack.pop();
cout << myStack.pop();
}
Activity 3:
Implement a Stack in Array, use class in the implementation so that Stack can be treated as an object and its operations as public interface for the user.
#include <iostream>
#include <cstring> // For strlen()
using namespace std;
#define SIZE 100
class Stack {
private:
char arr[SIZE];
int top;
public:
// Constructor
Stack() {
top = -1;
}
// Check if stack is full
bool isFull() {
return (top == SIZE - 1);
}
// Check if stack is empty
bool isEmpty() {
return (top == -1);
}
// Push operation
void push(char value) {
if (isFull()) {
cout << "Stack Overflow!" << endl;
return;
}
arr[++top] = value;
}
// Pop operation
char pop() {
if (isEmpty()) {
cout << "Stack Underflow!" << endl;
return '\0';
}
return arr[top--];
}
};
int main() {
Stack s1;
char str[] = "I Love Programming";
int len = strlen(str);
// Push all characters into stack
for (int i = 0; i < len; i++) {
s1.push(str[i]);
}
cout << "Reversed String: ";
// Pop all characters from stack
for (int i = 0; i < len; i++) {
cout << s1.pop();
}
return 0;
}
Activity 4:
Using the stack check that the given expression has balanced paranthesis or not.
#include <iostream>
#include <stack>
#include <string>
using namespace std;
// Function to check if expression is balanced
bool isBalanced(string expr)
{
stack<char> s;
for (int i = 0; i < expr.length(); i++)
{
char ch = expr[i];
// If opening bracket, push to stack
if (ch == '(' || ch == '{' || ch == '[')
{
s.push(ch);
}
// If closing bracket
else if (ch == ')' || ch == '}' || ch == ']')
{
// If stack is empty, not balanced
if (s.empty())
return false;
char topChar = s.top();
s.pop();
switch (ch)
{
case ')':
if (topChar != '(')
return false;
break;
case '}':
if (topChar != '{')
return false;
break;
case ']':
if (topChar != '[')
return false;
break;
}
}
}
// If stack is empty → balanced
return s.empty();
}
int main()
{
string expr = "[{}(){()}]";
if (isBalanced(expr))
cout << "Balanced";
else
cout << "Not Balanced";
return 0;
}
OUTPUT: Balanced
3) Graded Lab Tasks
Lab Task 1:
Write an application using Stack that checks whether the entered string of brackets is balanced, e.g. [{( )}] is Balanced while {[( )] } is not Balanced because the priority of the pranthesis is not maintained.
Lab Task 2:
Use dynamic stack and implement Infix to Postfix conversion algorithm and test it for various inputs.
Lab Task 3:
For a given postfix expression, use dynamic stack to evaluate a numerical result for given values of variables.
📚 Applications of Stack
-
Expression evaluation (Infix to Postfix)
-
Recursion handling
-
Syntax parsing
-
Backtracking algorithms
-
Memory management
👍 Advantages of Stack
-
Simple implementation
-
Efficient push and pop (O(1))
-
Useful in many real-world problems
👎 Disadvantages
-
Fixed size (array implementation)
-
Limited access (only top element accessible)
Conclusion
The Stack Data Structure is simple yet extremely powerful. Understanding push, pop, and peek operations builds a strong foundation for advanced topics like recursion, expression evaluation, and memory management.
Mastering stack implementation in C++ is essential for:
-
Data Structures exams
-
Coding interviews
-
Practical lab assessments
